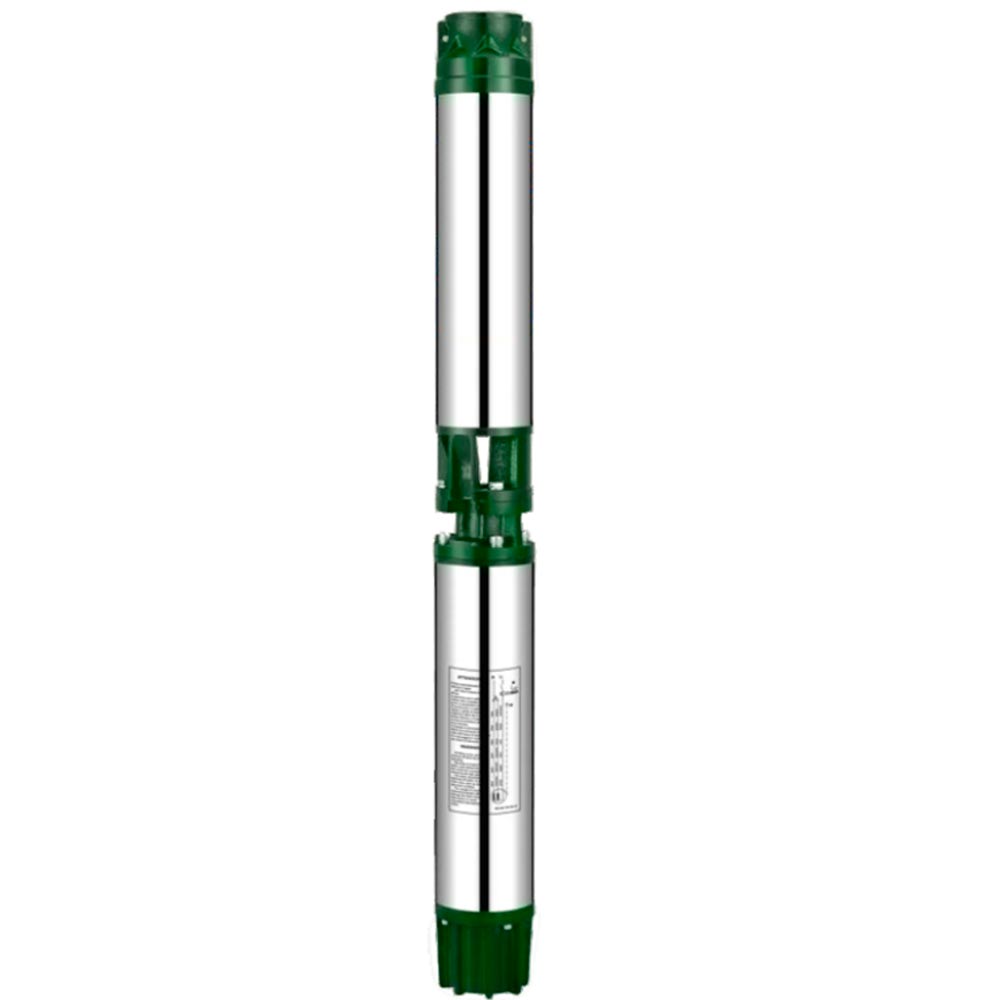

6ST submersible 6-inch pumps
4SU submersible 4-inch pumps
SIM submersible well pumps
Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions
Maximum fluid temperature up to +35 °C
Maximum sand content 0.25 %
Maximum immersion 80 m
Minimum well diameter 6″
Motor and pump
Rewindable motor or full obturated screen motor
Three-phase 220 V/380 V/50 Hz
Single-phase 220 V/50 Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO 2548
Warranty: 1 year
According to our general sales conditions
Components
Diffuser Cover/PC
Diffuser/PC+GF
Impeller/PC
Outlet/HT250
Bottom Seat/HT250
Top Chock / HT250
Connector / HT250
Flange / HT250
| Components | Material |
|---|---|
| Pump external casing | AISI 201 SS |
| Outlet | Cast-iron ASTM NO.30 |
| Connector | Cast-iron ASTM NO.30 |
| Diffuser | Plastic.PC & AISI 304 SS |
| Impeller | Plastic.PC |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Motor external casing | AISI 201 SS |
| Top chock | Cast-iron ASTM NO.30 |
| Seal | NBR Graphite-SiC/TC |
| Shaft | AISI 304 SS-C1045 |
| Bearing | ① NSK ② C&U |
| Seal lubricant oil | Oil for food machinery and pharmaceutical use |
Performance Data 50Hz
