Motor
1. Copper wire motor
2. Maximum ambient temperature 40℃
3. Protection class IPX4
4. Insulation class F
5. Single phase 220V–240V 50Hz or 60Hz
110V–127V 50Hz or 60Hz
Three phase 220V 50Hz or 60Hz
380V 50Hz or 60Hz
Application range
Suitable for the delivery of clean water or other liquids similar to clean water. Suitable for household water supply, garden watering, etc.
Model description

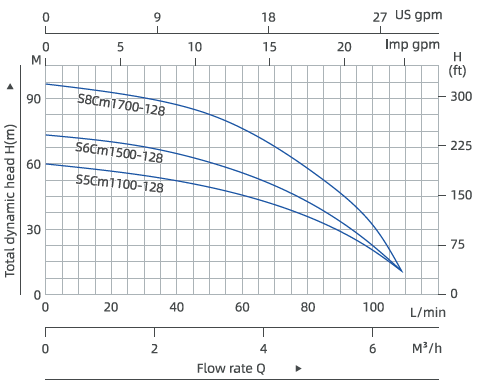

Technical parameters
| Model | Power | Max.Flow (L/MIN) | Max.Head (M) | MAX.Suct (M) | In/out Pipe diameter | |
|---|---|---|---|---|---|---|
| KW | HP | |||||
| S5Cm1100-128 | 1.1 | 1.5 | 108 | 60 | / | 1.25”×1” |
| S6Cm1500-128 | 1.5 | 2 | 108 | 72 | / | 1.25”×1” |
| S8Cm1700-128 | 1.7 | 2.3 | 108 | 96 | / | 1.25”×1” |
