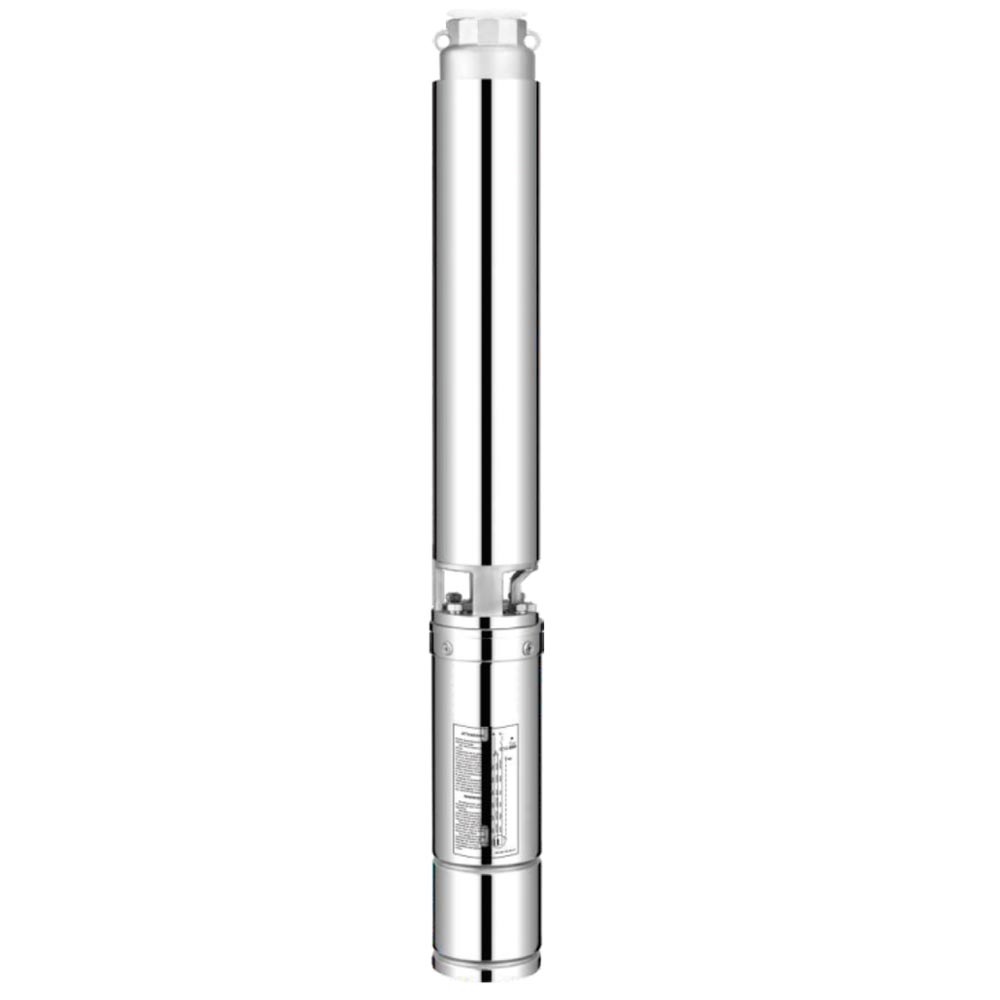

SIM submersible well pumps
Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions
Maximum fluid temperature up to +35 °C
Maximum sand content: 0.25 %
Maximum immersion: 5 m
Minimum well diameter: 5″
Motor and pump
Rewindable motor
Three-phase: 220 V / 380 V / 50 Hz
Single-phase: 220 V / 50 Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 2548
Warranty: 1 year
According to our general sales conditions

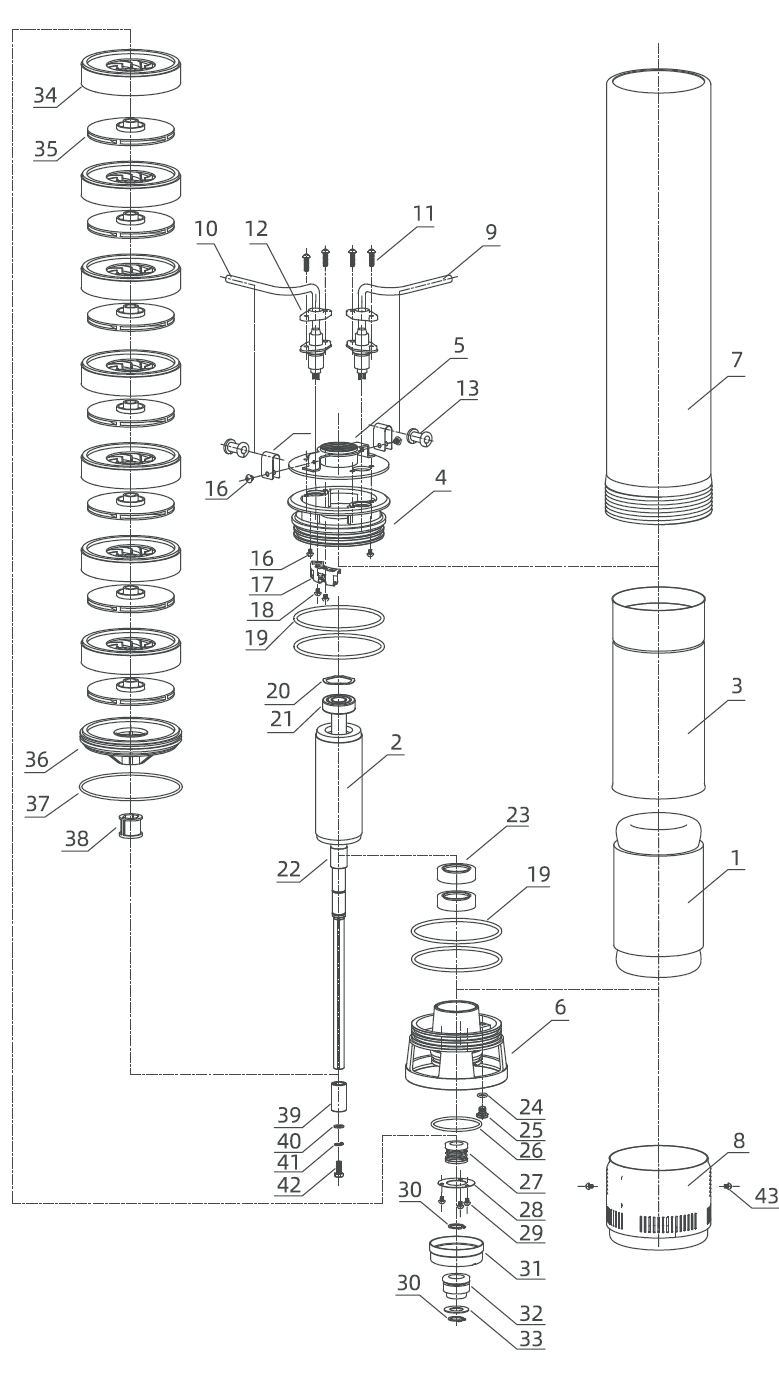

| Components | Material |
|---|---|
| Outlet | AISI 304 SS |
| Connector | AISI 304 SS |
| Diffuser | PPO |
| Impeller | PPO |
| Motor external casing | AISI 201 SS |
| Top chock | ① Cast-iron |
| Mechanical seal | Special seal for deep well (carbon-SiC/TC) |
| Shaft | 3C213 |
| Bearing | ① C&U ② NSK |
| Seal lubricant oil | Oil for food machinery and pharmaceutical use |

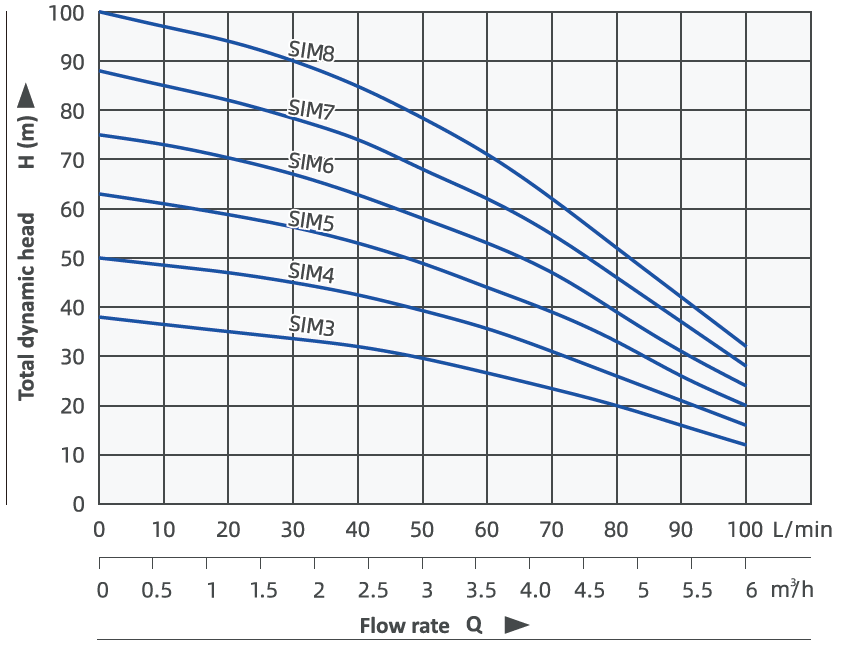

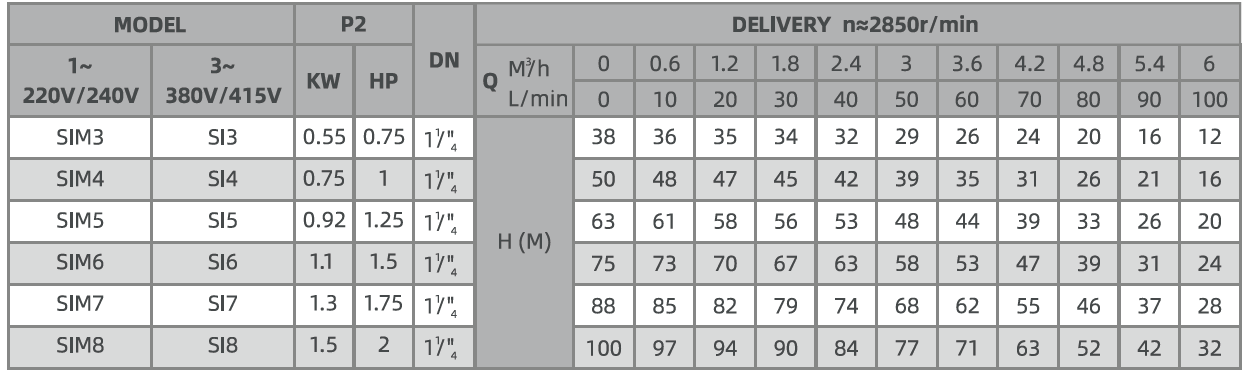

Performance Data 50Hz
